Separate Aluminum Copper Eddy Current Separator Machine Plastic Sorting
Product introduction:
TONTEN machinery eddy current separator, also known as nonferrous metal separator machine, mainly used to separate copper, aluminum and other nonferrous metals from industrial waste and domestic garbage. It can be widely used in garbage disposal, scrap car dismantling and recycling, scrap electrical appliance recycling and other fields, as well as material processing in nonferrous metal processing industry.Eddy current separator widely used to separate nonferrous metal particles from domestic waste incineration slag, other nonferrous metal fragments and non-metallic materials, recover nonferrous metals from scrap electronic circuit board fragments, separate nonferrous metals from automobile dismantling and crushing materials, remove aluminum bottle caps and aluminum or copper alloy parts from broken glass materials, etc.
Advantages:
1. Eddy current separator solves the time-consuming and labor-intensive problem of manual separation and the technical difficulties of recycling. It is in line with the development trend of green and low-carbon
2. High recovery rate: non-ferrous metals can be separated, and the recovery rate can reach 98%.
3. Continuous operation day and night can effectively separate non-ferrous metals such as copper and aluminum, and the work efficiency is 10 times or even higher than that of manual labor.
4.The eddy current separator is easy to operate, and metals and non-metals are automatically separated; the reliable single power supply design makes the system compact and reliable. Using high-gradient rare earth permanent magnet system, the energy consumption is low and maintenance is convenient.
5.Widely used, it opens up for resource utilization of industrial solid wastes such as electronic waste, waste plastic doors and windows, and waste auto parts
Eddy current separator parameters:
| Model | Spindle motor
(Kw) | Belt motor
(Kw) | Vibrating motor
(W) | Sorting material
(m3/h) | Size LxWxH
(mm) | Weight
(kg) |
| TT-E450 | 3 | 0.75 | 120 | 1-3 | 3300*820*1500 | 800 |
| TT-E550 | 3 | 0.75 | 120 | 3-5 | 3300*920*1500 | 880 |
| TT-E650 | 3 | 0.75 | 120 | 4-7 | 3300*1020*1500 | 960 |
| TT-E800 | 4 | 0.75 | 180 | 5-9 | 3300*1140*1500 | 1000 |
| TT-E1000 | 5.5 | 0.75 | 180 | 6-11 | 3300*1345*1500 | 1260 |
| TT-E1200 | 5.5 | 1.5 | 370 | 8-13 | 3300*1545*1500 | 1380 |
| TT-E1500 | 7.5 | 1.5 | 370 | 10-15 | 3300*1845*1500 | 1520 |
|
|

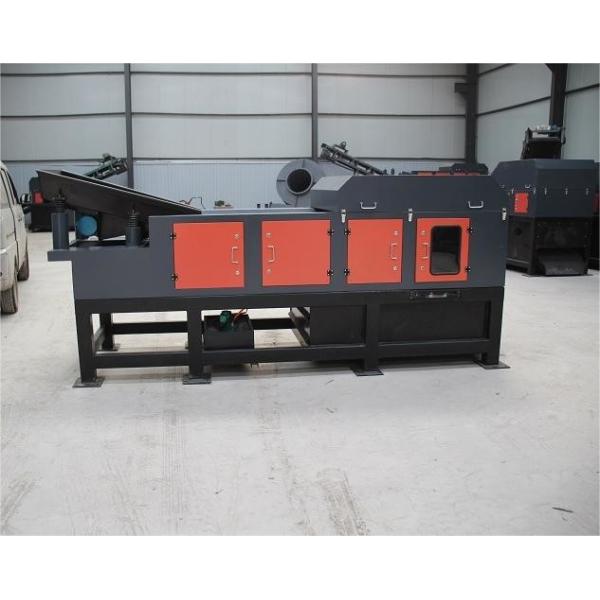

Separate Aluminum Copper Eddy Current Separator Machine Plastic Sorting Images
|
