Silica Sand Swing Vibrating Screen Square Screen Sieving Machine

Silica Sand Swing Vibrating Screen Square Screen Sieving Machine

Product introduction:

Square swing screen adopts a hanging structure,high-efficiency separation equipment with high precision and large output. used to separate materials according to their particle size. This screen machine adopts a closed structure, and the screen is usually fixed by tensioning on both sides, making it easy to install.The design of the square swing screen is similar to the manual action and process of the screen machine. It combines the plane circular motion and the upward parabolic motion. The radial angle and the tangential angle can be adjusted to achieve the purpose of efficient screening.Rotary reverse screening: Materials are screened from fine,medium fine,medium,coarse.Coarse materials play a role in cleaning the mesh.

Working principle:
The swinging body adjustment of the meridional and tangential angles adjusts the involute movement on the screen of the equipment, that is, the screen box, reciprocates back and forth under the action of inertial force. The swinging screen uses a vibration motor to drive the swinging body for screening. The screen box and the screen surface are conjoined to shake periodically, so that the materials on the screen surface Along with the screen box, it makes a directional jumping movement. The movement mode of this process is similar to manual screening. The material particles close to the screen hole size are successfully separated, and the materials larger than the screen hole size are transported to the outlet.

Features:
1. The reciprocating and rotating motion method quickly disperses and screens materials to improve work efficiency.
2. The dynamic load on the foundation is very small, the screen material is hard and durable, the utilization rate is high and the service life is long.
3. The swing vibrating screen has reasonable design, simple structure, no installation required and smooth operation.
4. Integrated design, good sealing effect, low noise and no dust
5. Each layer of screen mesh is equipped with silicone rubber balls, ultrasound, etc. screen mesh anti-clogging cleaning device. The screening machine continuously cleans the mesh mesh during operation to ensure that the mesh mesh is not blocked.

6. Accurate to 6 levels of separation, the screening efficiency is as high as 99%

Swinging vibrating screen parameter:

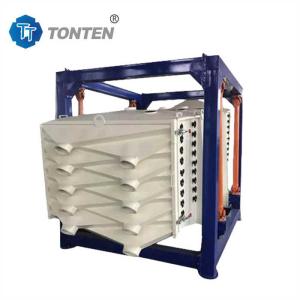

Silica Sand Swing Vibrating Screen Square Screen Sieving Machine Images
